Consumer electronics cable assemblies

Internal wiring and external cables for wearables, smart home devices, audio, displays and handheld products.

Get a free sample Request a quote
Built to IPC/WHMA-A-620 · 48 hours Bay Area delivery

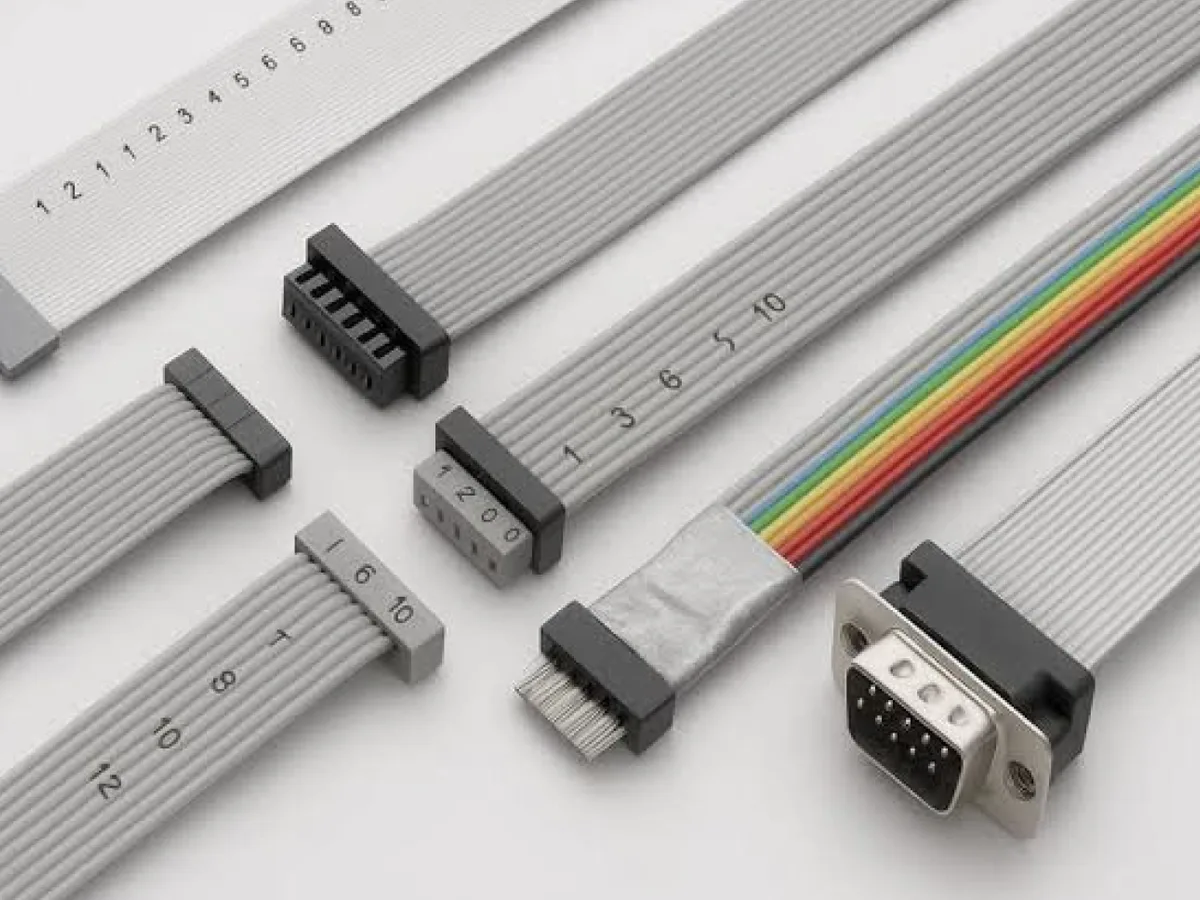

Consumer electronics cable assemblies
Connector and cable families

What we terminate for consumer electronics.

Families, not single part numbers. If yours isn't here, send the part number and we'll quote it.

Board-to-wire

  • JST SH connectorJST SH
  • JST GH connectorJST GH
  • JST PH connectorJST PH
  • JST ACH connectorJST ACH
  • Molex PicoBlade connectorMolex PicoBlade
  • Molex Pico-Clasp connectorMolex Pico-Clasp
  • Hirose DF13 connectorHirose DF13
  • Hirose DF52 connectorHirose DF52
  • IDC ribbon (1.27 / 2.0 / 2.54 mm) connectorIDC ribbon (1.27 / 2.0 / 2.54 mm)

External I/O

  • USB Type-C connectorUSB Type-C
  • USB-A / USB-B / Micro-USB connectorUSB-A / USB-B / Micro-USB
  • HDMI connectorHDMI
  • DisplayPort connectorDisplayPort
  • 3.5 mm / 2.5 mm audio (TRS / TRRS) connector3.5 mm / 2.5 mm audio (TRS / TRRS)
  • DC barrel (2.1 / 2.5 mm) connectorDC barrel (2.1 / 2.5 mm)
  • Magnetic pogo-pin connectorMagnetic pogo-pin

Flex and fine-pitch

  • FFC / FPC (0.5 / 1.0 mm pitch) connectorFFC / FPC (0.5 / 1.0 mm pitch)
  • Micro-coax arrays (I-PEX CABLINE, Hirose) connectorMicro-coax arrays (I-PEX CABLINE, Hirose)
  • LVDS / eDP display cables connectorLVDS / eDP display cables

RF

  • U.FL / MHF connectorU.FL / MHF
  • MHF4 connectorMHF4
  • SMA / RP-SMA connectorSMA / RP-SMA
  • MMCX connectorMMCX

Battery

  • JST PH / XH balance leads connectorJST PH / XH balance leads
  • Molex Micro-Fit battery leads connectorMolex Micro-Fit battery leads
  • Nickel-strip tab leads connectorNickel-strip tab leads

Cable types

  • 28–32 AWG high-strand connector28–32 AWG high-strand
  • Micro-coax 40–46 AWG connectorMicro-coax 40–46 AWG
  • Shielded USB jacketed cable connectorShielded USB jacketed cable
  • Silicone and TPE jackets connectorSilicone and TPE jackets

Assemblies we build

  • Internal board-to-board and board-to-wire jumpers
  • Battery pack leads with balance taps
  • USB Type-C and USB-A cable assemblies
  • Display and camera flex jumpers
  • Antenna micro-coax pigtails
  • DC power cords and adapters

Tests on these assemblies

  • Point-to-point continuity and shorts
  • Conductor resistance (4-wire)
  • Differential impedance (TDR) on request
  • Shield continuity
  • Crimp pull force per terminal lot
View a sample test report
